Athena DB Connection can't add

Get Help
1

  1. my system config is follow:

    image801×287 11.9 KB

  2. i try to add athena db database connection, but time error occur.

    image714×819 29.3 KB

  3. fail log is follow:

    image924×858 159 KB

  4. when i login aws and check athena previous query history,
    I can find simple query execution is success

    image735×84 3.59 KB

  5. so i operate this to old server that already operate fine
    then i can add athena connection.

  6. {
    "browser-info": {
    "language": "ko",
    "platform": "MacIntel",
    "userAgent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/102.0.0.0 Safari/537.36",
    "vendor": "Google Inc."
    },
    "system-info": {
    "file.encoding": "UTF-8",
    "java.runtime.name": "OpenJDK Runtime Environment",
    "java.runtime.version": "1.8.0_242-b08",
    "java.vendor": "AdoptOpenJDK",
    "java.vendor.url": "http://java.oracle.com/",
    "java.version": "1.8.0_242",
    "java.vm.name": "OpenJDK 64-Bit Server VM",
    "java.vm.version": "25.242-b08",
    "os.name": "Linux",
    "os.version": "4.15.0-163-generic",
    "user.language": "ko",
    "user.timezone": "Asia/Seoul"
    },
    "metabase-info": {
    "databases": [
    "athena"
    ],
    "hosting-env": "unknown",
    "application-database": "mysql",
    "application-database-details": {
    "database": {
    "name": "MySQL",
    "version": "5.7.36-0ubuntu0.18.04.1"
    },
    "jdbc-driver": {
    "name": "MariaDB Connector/J",
    "version": "2.7.5"
    }
    },
    "run-mode": "prod",
    "version": {
    "tag": "v0.43.3",
    "date": "2022-06-13",
    "branch": "release-x.43.x",
    "hash": "c9c7ef0"
    },
    "settings": {
    "report-timezone": "Asia/Seoul"
    }
    }
    }

what do i have to check for this error ?
For check access I make sample spring-boot demo and it work success in this server.
and athena.ap-north-2.amazonaws.com 443

2

Hi @beomkyu

  1. Update to Java 11: https://www.metabase.com/docs/latest/operations-guide/java-versions.html
  2. Make sure you're using 1.4.0 of the driver: https://github.com/dacort/metabase-athena-driver/releases
  3. Your log looks off, seems like you are using a custom Log4j configuration, which is not valid.
3

thank 's for your answer.
i adjust what you suggest.

  1. use java11
  • already use java11 but it didn't work.
  1. already check the version of impala driver

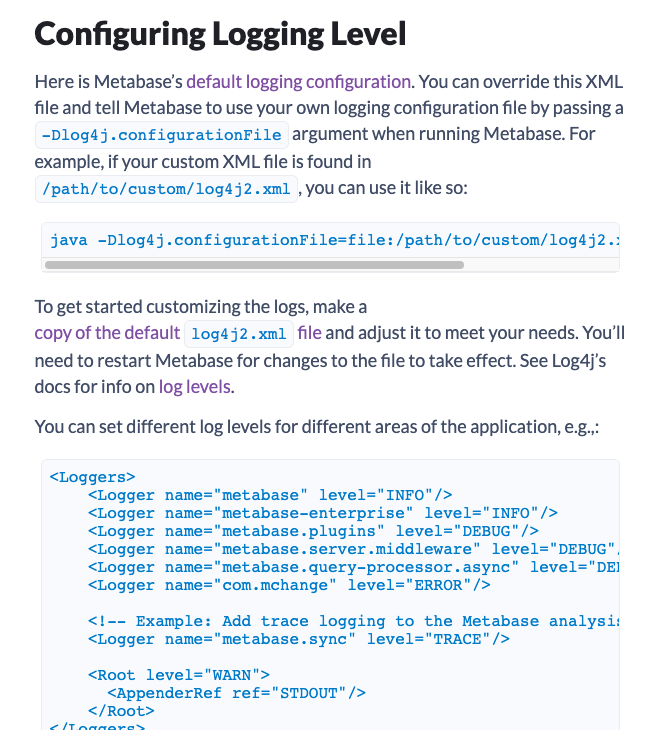

  2. i use jar file with this configuration and the format for logging guided metabase web page
    Redirecting…
    image664×730 94.8 KB

    java -Dlog4j.configurationFile=file:/log4j2.xml -jar metabase.jar &
4

@beomkyu

  1. You were using Java 8.
  2. I don't understand why you are talking about Impala driver, when you are talking about Athena.
  3. Post your Log4j configuration or remove it, so it just uses the default configuration. And enable more logging in the driver: https://github.com/dacort/metabase-athena-driver#configuring
5

sorry. i akward to use english .
after i ckeck all of my configuration. i figure out that should have to add additional paramter
: UseResultsetStreaming=0
before add parameter metabase tried to connect with 444 port . and that's why i can add connection.
now It's solved
