Filter for waterfall chart in Metabase

[williamvu]

Hi All,
I would like to ask if we can have filter for waterfall in Metabase? the dataset have multiple entities (please see the figure) , what I want is if I choose one specific entity using filter in a dashboard, Metabase will display a waterfall chart for the chosen entity.
For example, with the data below, if I choose filter "a", it will plot with data when filter=a only.
Thank you very much,

[flamber]

Hi @williamvu
Yes, you can do that. It really doesn't have anything to do with Waterfall visualization.
Have a look here: https://www.metabase.com/learn/dashboards/filters

[williamvu]

Hi @flamber;
with the above example data; I try the following sql options:

option 1:
select time, value, type from table
where {{type}} -- and some UI step to map type to type column
--> the waterfall did not show up
With this SQL query, if I choose visualization option as line chart, I am able to use the filter (by adding type column as a series breakout.

option 2:
select time, value, type from table
where {{type}} and type='a' -- basically, select data for type 'a' only
--> the waterfall chart appear, but I could not have the filter.

Could you please let me know which part I did wrong for the waterfall chart?

Thank you,
Regards,

[flamber]

@williamvu But you should not return the type in the select clause, since you don't want it to appear anywhere in the visualization - right?
Post a screenshot of your problem, it might be easier to explain what you want.

[williamvu]

Thanks @flamber,

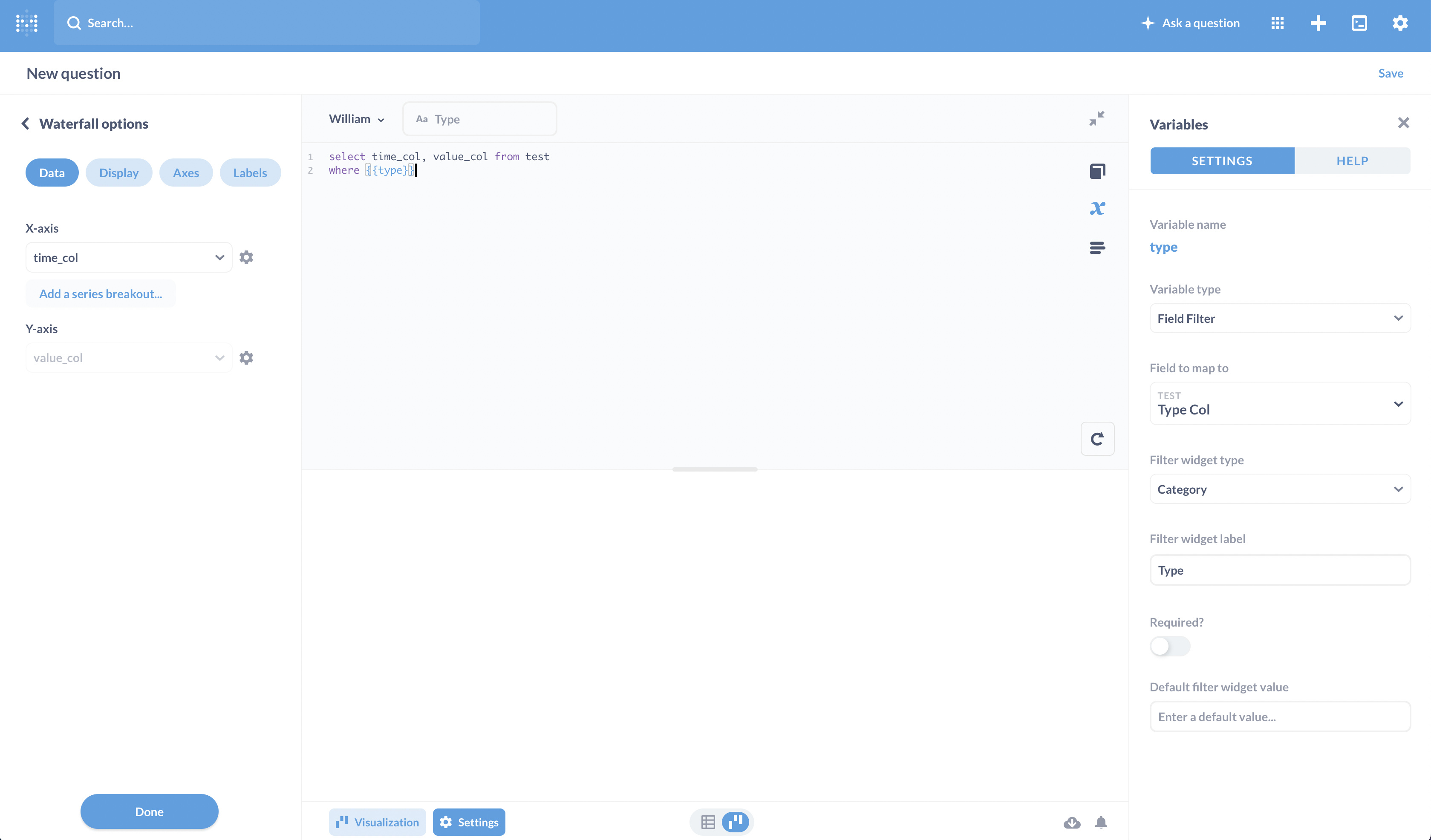

Following your suggestion, I upload some pictures here. From the screenshot, you can see the sql I use, and the outcome.

1. a query to show data collected from db



   2.When I query all data, no waterfall chart appears


2. If query data for a specific type_col value, I can see a waterfall chart, but for only one group.
   What I want is to have a filter, that allow me to choose type_col value, with the chosen one, the corresponding waterfall chart will appear (in a dashboard).


3. If I choose line chart, I am able to see two lines for different type_col



   If is there any point I did not explain well, kindly let me know.
   Thank you,
   William

[flamber]

@williamvu You are seeing this issue:
https://github.com/metabase/metabase/issues/15465 - upvote by clicking on the first post
So either group by time_col, or make the variable Required.

[williamvu]

Thanks @flamber
Upvoted
